POWER TRIPLE LOCK 커넥터는 보다 나은 전원 및 신호용 설계를 위해 특별히 개발되었습니다.
이 시스템은 3 가지 연결 방법을 제공하여 연결방식을 개선합니다.
세 가지 방식으로 Locking을 제공합니다.
콘넥터 상부의 래치(Latch)로 암/수(Cap (또는 헤더)과 Plug)를 연결합니다.
CPA (콘넥터 위치 보증 장치) 는 Cap을 잠그고 서로 연결합니다. (그림에서 뒤쪽 빨간색)
TPA (터미널 위치 보증 장치) 는 Retainer 로써 터미널이 뒤로 빠지는 걸 방지합니다. (옆에 홈이 있음)
온도 범위는 표준 105 ° C, 고온 150 ° C 및 글로우 와이어 애플리케이션을 지원합니다.
6mm 피치로 2핀에서 최대 15 핀을 제공됩니다.
Electrical Characteristics
Operating Voltage (VAC): 600
Operating Voltage (VDC): 600
Continuous Current Rating (A): 15

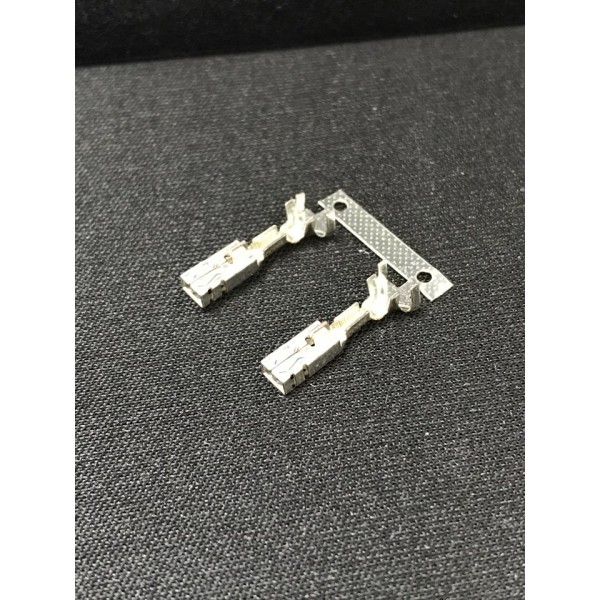

Contact Features
Contact Mating Area Plating Material : Pre-Tin
Contact Current Rating (Max) (A): 15
Contact Type : Receptacle
Contact Retention Within Housing : Without
Mating Tab Width : 2.7 mm [ .106 in ]
Mating Tab Thickness : 1.63 mm [ .064 in ]
Contact Base Material : Copper Alloy
Wire Contact Termination Area Plating Material Thickness : .8 – 1.5 µm [ 31.49 – 59 µin ]
Wire Contact Termination Area Plating Material : Pre-Tin
Wire Contact Termination Area Plating Material Finish : Bright
Contact Orientation : Straight
Termination Features
Termination Method to Wire & Cable : Crimp
Mechanical Attachment
Connector Mounting Type : Cable Mount (Free-Hanging)
Wire Insulation Support : With
Dimensions
Wire Size (AWG): 19 – 16
Wire Size (mm²): .65 – 1.3
Accepts Wire Insulation Diameter Range : 2 – 3.3 mm [ .079 – .13 in ]
Usage Conditions
Operating Temperature Range : -55 – 150 °C [ -67 – 302 °F ]
Operation/Application
Circuit Application : Power
Industry Standards
Agency/Standard : UL, VDE
VDE Tested : Yes
Other
For Use With : Plug Housing
Comment : Complies with IEC 61984 Specification
Wire/Cable Type : Discrete Wire
